Plants

  /  Plants

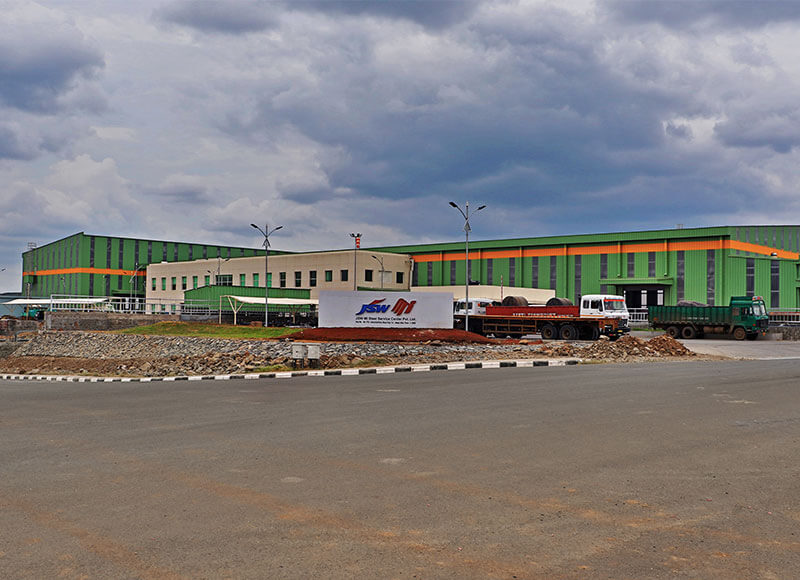

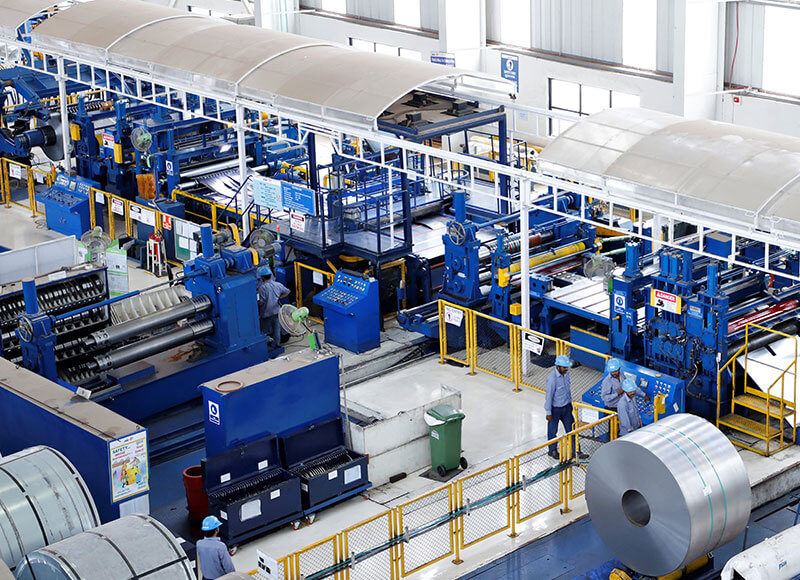

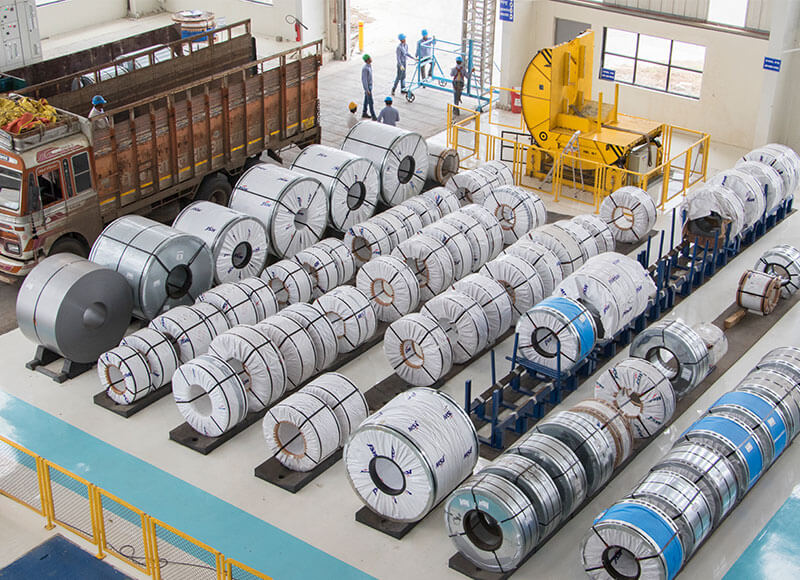

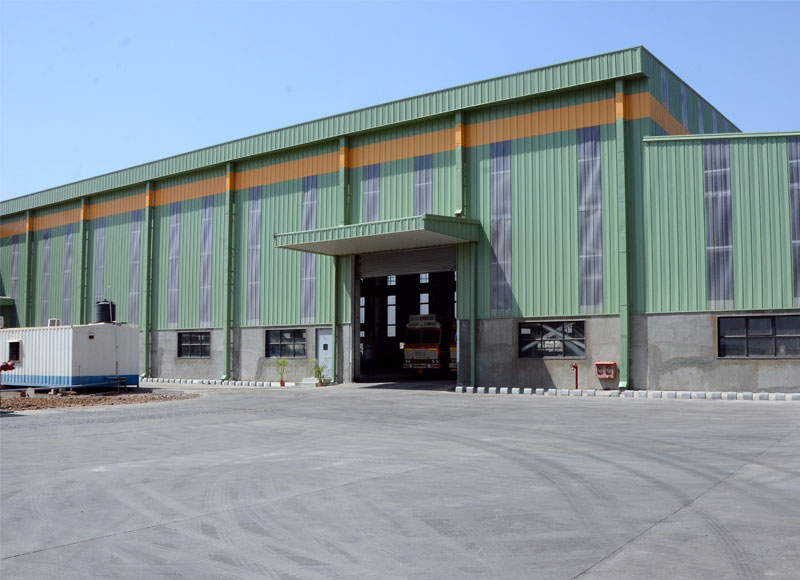

Pune Plant

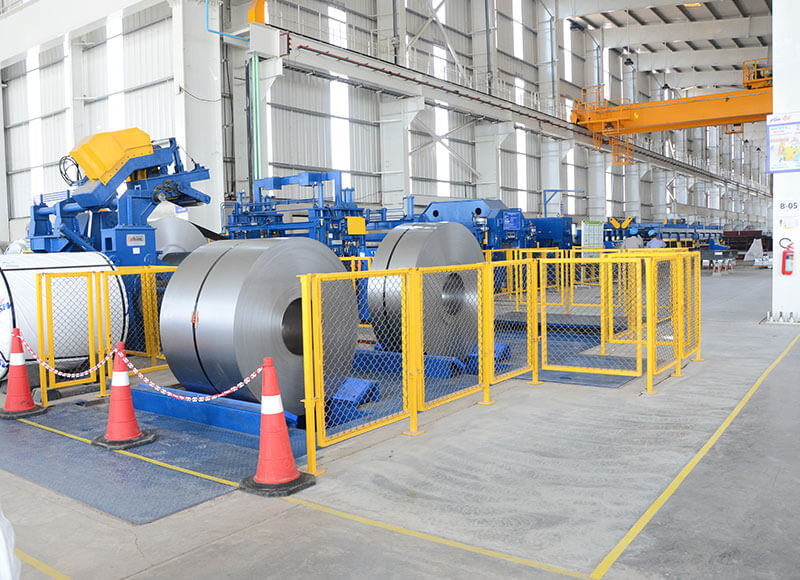

The plant in Pune became operational in March 2015 equipped with a state-of-the-art Slitter and 3 CTL (Cut to Length) lines to process flat rolled steel products such as HRPO, CR and Coated products.

Location: Khed City, Pune

Land area: 54,733 sq. mtrs.

Slitter

Light Gauge CTL

Heavy Gauge CTL

Narrow CTL

Slitter line: (0.6 – 6.5 mm) X 1870 mm width (TS up to 1180Mpa)

Light Gauge CTL: (0.6 – 3.3 mm) X 1870 mm width X 4500 mm length (TS up to 990Mpa up to 2.3 mm thick)

Heavy Gauge CTL: (1.4 – 6.0 mm) X 1300 mm width X 4200 mm length (TS up to 1180Mpa)

Narrow CTL: (0.6 – 3.3 mm) X 150 – 630 mm width X 2500 mm length (TS up to 1180Mpa up to 2 mm thick)

Slitter line: 180,000 MT/year

Light Gauge CTL: 70,000 MT/year

Heavy Gauge CTL: 60,000 MT/year

Narrow CTL: 30,000 MT/year

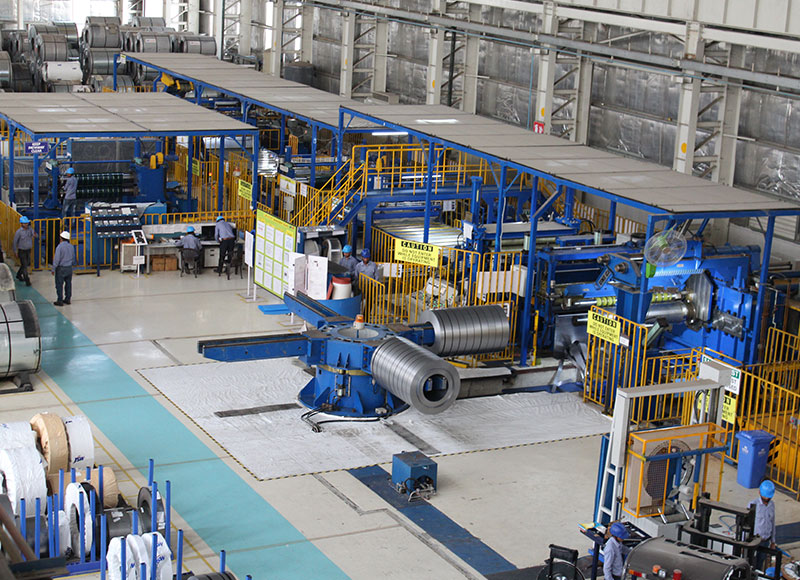

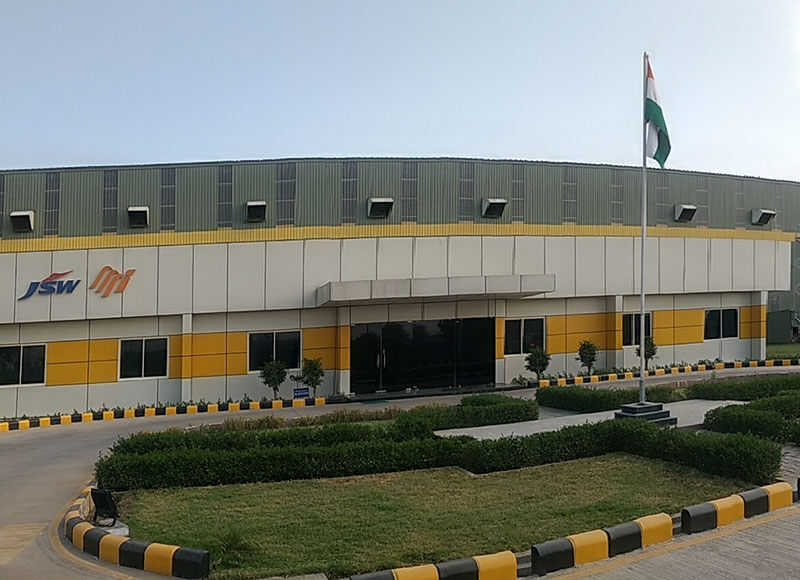

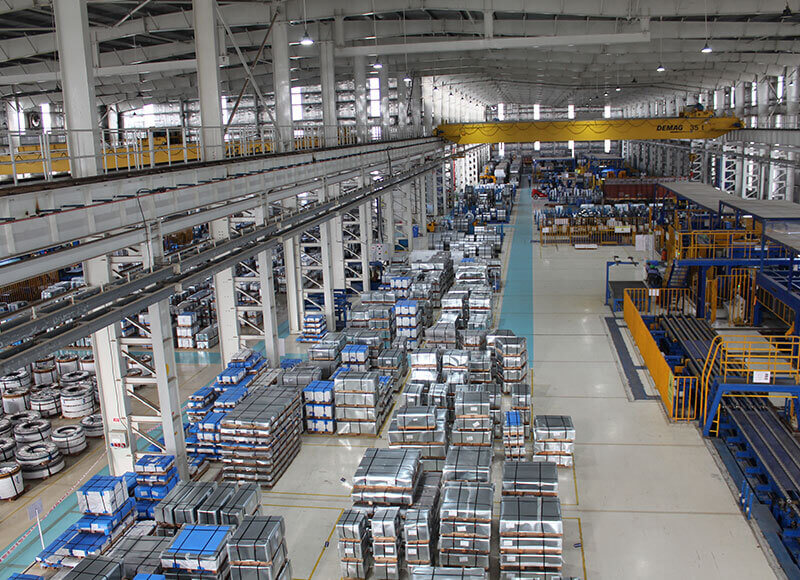

Palwal Plant

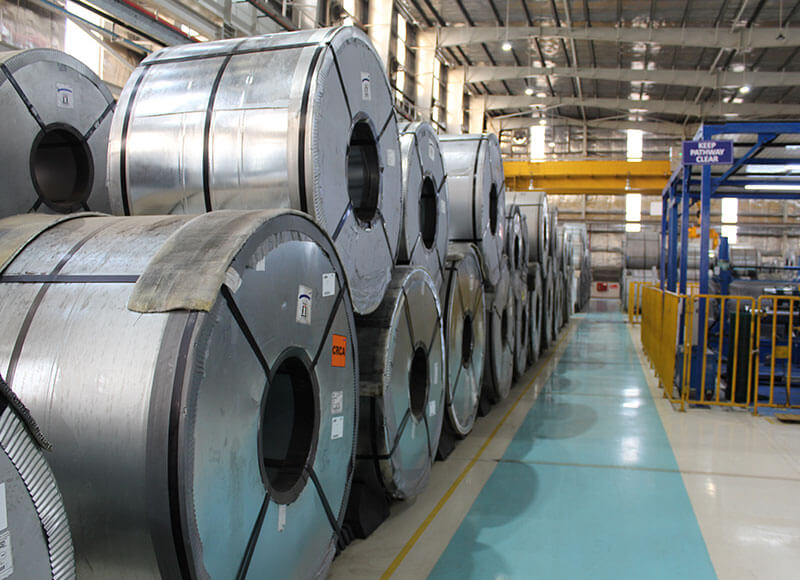

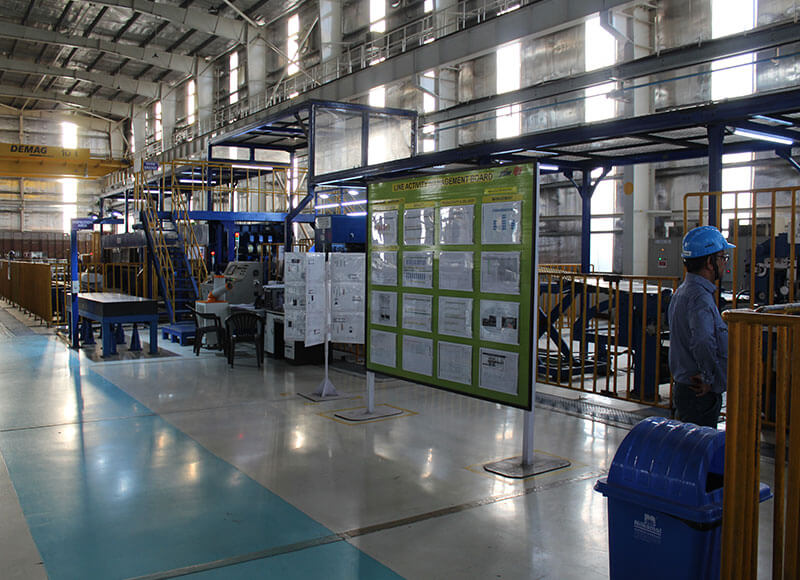

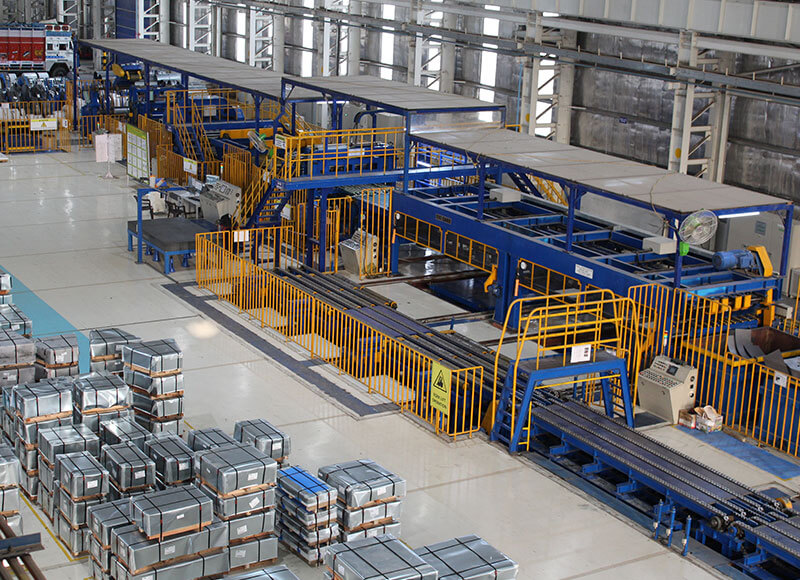

The plant in Palwal became operational in May 2018 equipped with a state-of-the-art Slitter and 2 CTL (Cut to Length) lines to process flat rolled steel products such as HRPO, CRCA, Electrical Steel and Coated products.

Location: Palwal, Haryana

Land area: 40,358 sq. mtrs.

Slitter

Wider CTL (WCTL)

Narrow CTL (NCTL)

Slitter line: (0.25 – 3.2 mm) X 1870 mm width (TS up to 980Mpa)

Wider CTL: (0.5 - 3.2 mm) X 1650 mm width X 3000 mm length (TS up to 980Mpa)

Narrow CTL: (0.25 – 1.6 mm) X 800 mm width X 4500 mm length (TS up to 380Mpa)

Slitter line: 120,000 MT/year

Wider CTL: 60,000 MT/year

Narrow CTL: 30,000 MT/year

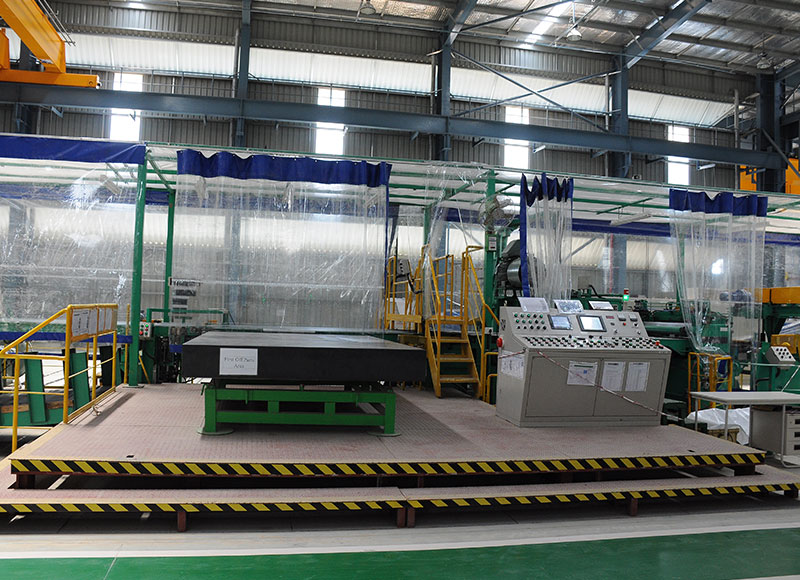

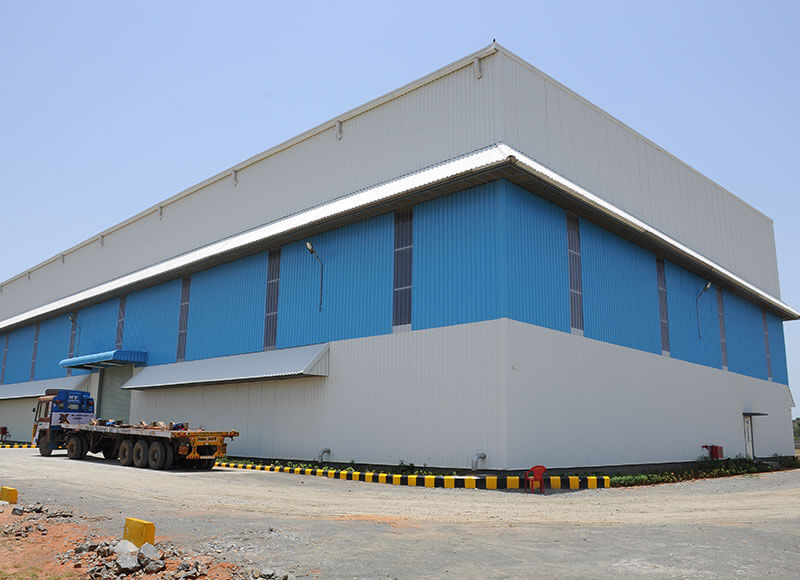

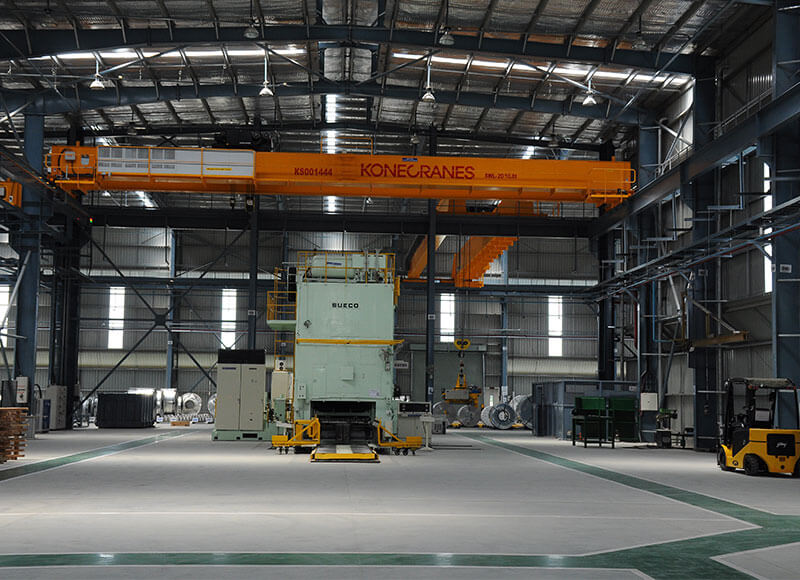

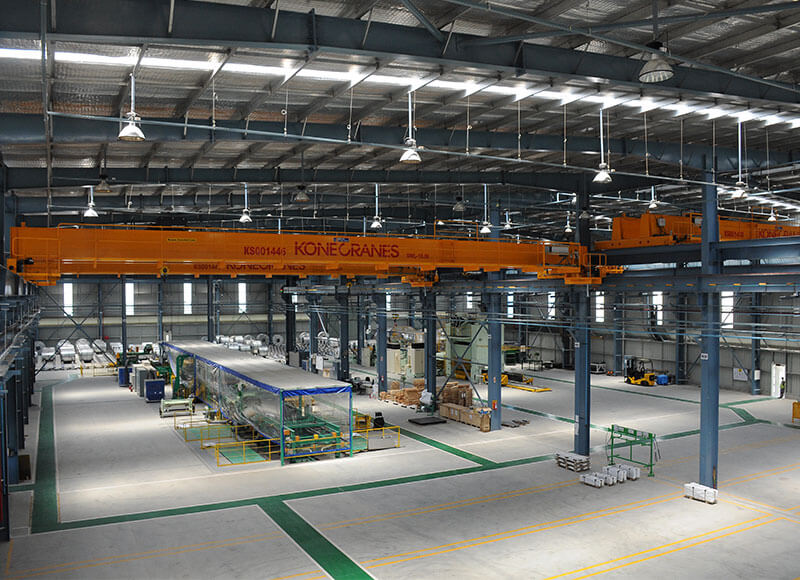

Chennai Plant

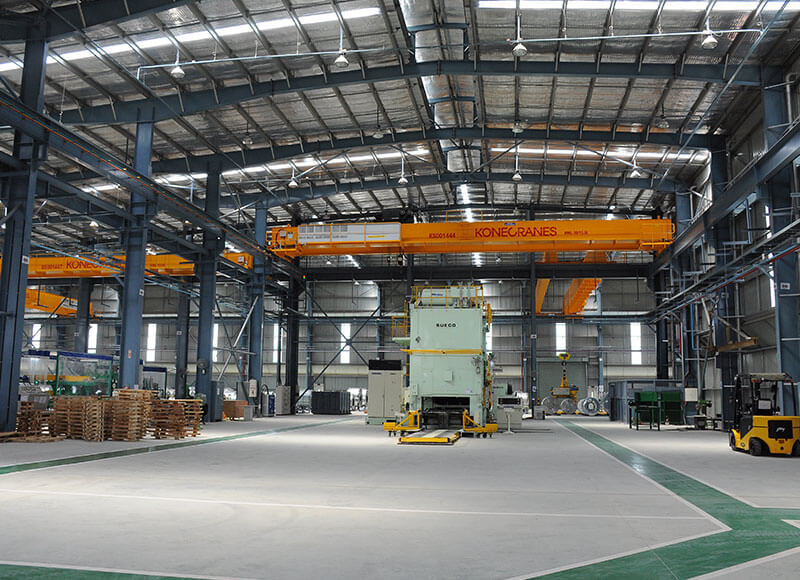

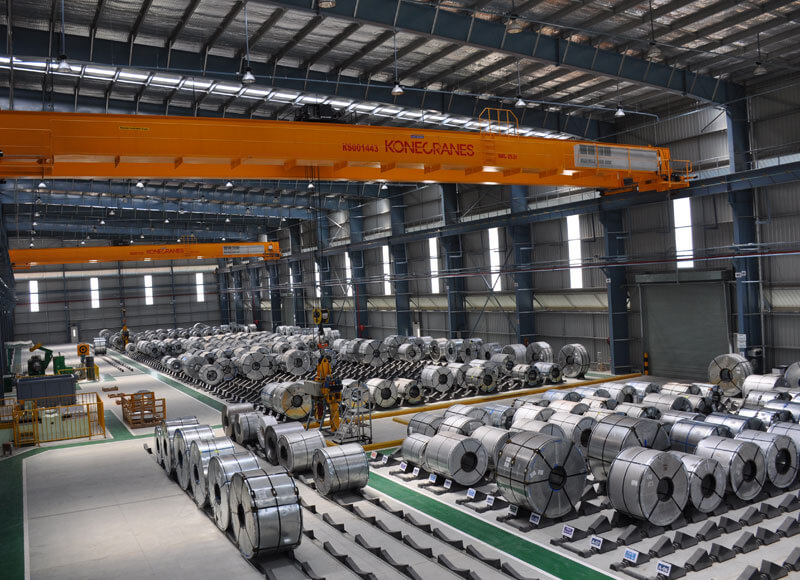

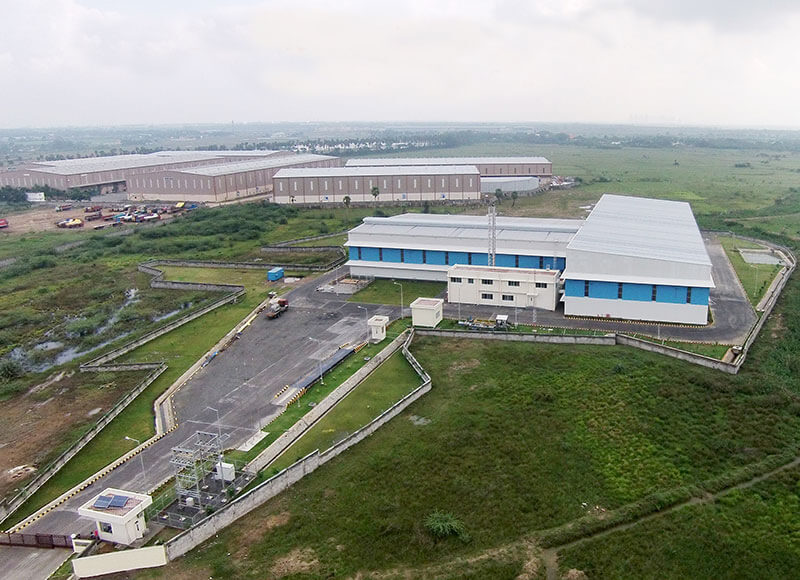

The plant in Chennai became operational in June 2014 equipped with a state-of-the-art Blanking Line, Slitter Line and 2 CTL (Cut to Length) lines to process flat rolled steel products such as HRPO, CR and Coated Products.

Location: Varanavasi, Kanchipuram

Land area: 58,817 sq. mtrs.

Blanking Line

Wider CTL (WCTL)

Blanking line: Straight Cut Part (0.6 mm - 3.00 mm), 300 mm to 1830 mm width, 100 mm to 2500 mm cutting length; Profile Part (0.6 mm to 2.00 mm), 300 mm to 1830 mm width, 100 mm to 2500 mm cutting length

Wider CTL: OSL (0.4 mm - 2.3 mm) 350 mm to 1660 mm width, cutting length 250 mm to 2500 mm, 0 – 30 degree + or -; Straight Cut Part (0.4 mm to 2.3 mm) 210 mm to 1680 mm width, cutting length 250 mm to 2500 mm

Blanking line: 45,000 MT/year

Wider CTL: 60,000 MT/year
